Description
AT-OMNI-121
- Best-in-class AV over IP performance and reliability over Gigabit Ethernet
- AV decoder for HDMI® output up to 4K/UHD, plus embedded audio and RS-232 or IR control pass-through
- Supports 4K/60 4:4:4 plus HDR formats
- Advanced VCx™ codec delivers artifact-free presentation of computer-generated content and fast-motion video
- Ultra-fast switching between 4K/60 video streams
- Multiview window processing (with AT-OMNI-111 encoder)
- Thumbnail preview of encoded video streams through Velocity™ AV control or web GUI
- Local or PoE (Power over Ethernet) powering
- Video wall processing and other visual enhancements
- Industry-standard, network security features including IEEE 802.1x
The Atlona AT-OMNI-121 is a networked AV decoder for HDMI output supporting resolutions up to 4K/60 4:4:4 and HDR (High Dynamic Range), plus audio embedding and de-embedding, and RS-232 or IR control pass-through. OmniStream is designed for high performance, flexible distribution of AV over standard, off-the-shelf Gigabit Ethernet switches in commercial audiovisual applications. The OMNI-121 decoder features the advanced VCx™ codec which delivers 4K/60 4:4:4 video from encode to decode, with artifact-free presentation of computer-generated content and fast-motion video, and ultra-low latency less than one frame. Additionally, the OMNI-121 features multiview window processing, with the ability to ingest up to four streams from AT-OMNI-111 encoders and display them simultaneously on a single screen. This decoder is housed in a half-width rack enclosure with front-to-back air flow, and is ideal for high-density, compact installation in distributed, multi-display installations.

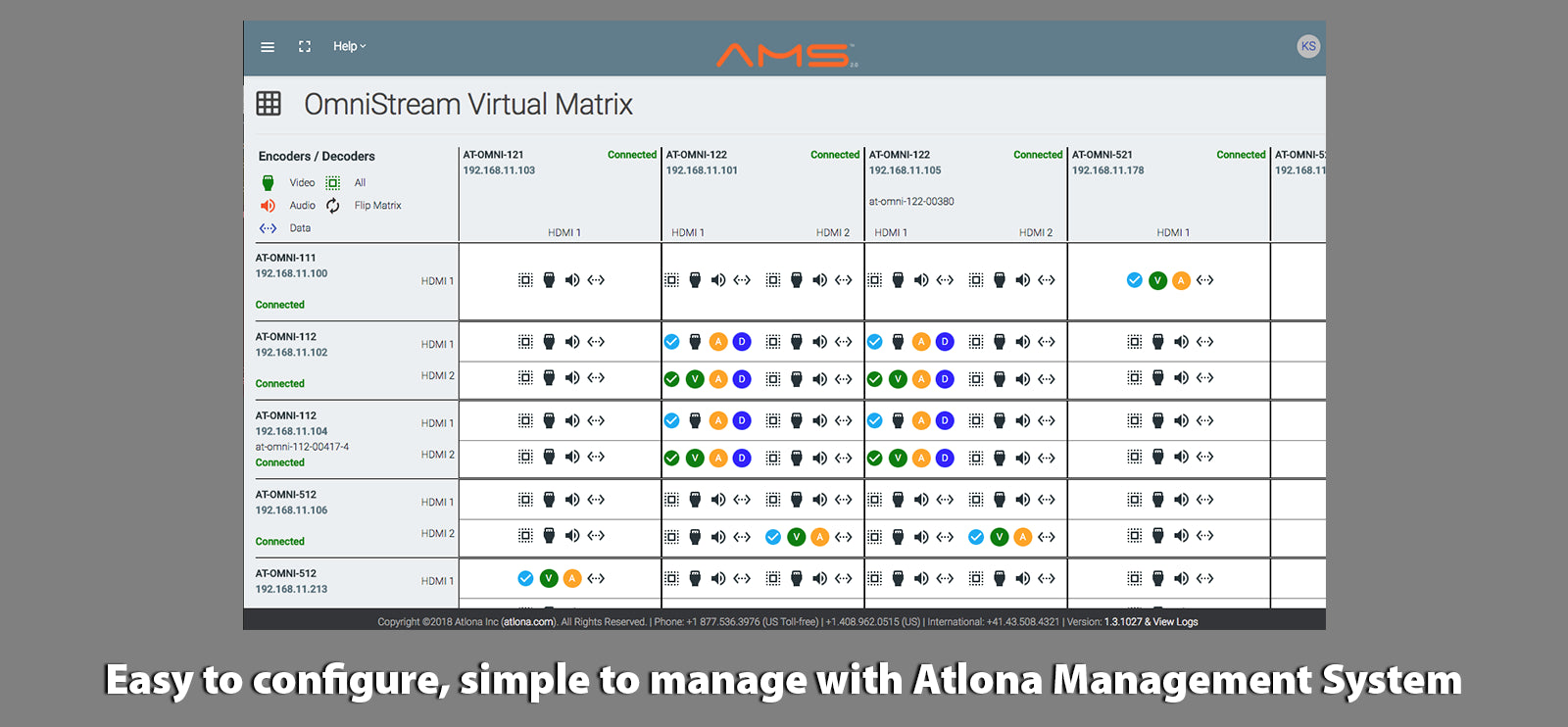

Easy to Configure, Simple to Manage
OmniStream AV over IP systems are remarkably easy to set up and manage – whether for a meeting room, retail establishment, auditorium, divisible room, or an entire university campus. Velocity™ Device Manager features automatic network device discovery, plus an intuitive web-based GUI that lets you configure virtual routing for AV, control, and data over the network – just as easily as you would with conventional AV matrix switching. Velocity Device Manager also streamlines and simplifies management of OmniStream systems through continuous system monitoring, notifications and alerts, event logging, multi-device configuration and backup, automated firmware updates, remote device control, and more.
Product Compatibility
The OMNI-121 is compatible with the OMNI-111, OMNI-111-WP, and OMNI-112 encoders, as well as the OMNI-512 encoder.
Designed for Pro AV integration
The OMNI-121 includes several features for optimizing integration and enhancing professional AV presentations. EDID and HDCP management features ensure reliable, consistent system operation and compatibility with source devices. EDID management includes the option to assign an EDID captured from a display at an OmniStream AV decoder. Aspect ratio controls are available to specify the presentation viewing format as desired by the end user. Additionally, OmniStream offers the option to overlay a logo image (PNG with transparent background) onto an AV presentation for corporate or institutional branding. A full-screen image can also be displayed, as a backup in an event of an interruption in an AV stream, or to display information between presentations.
OmniStream delivers fast switching between 4K/60 video streams from OmniStream encoders. Encoded video streams can be previewed in a Velocity™ touch panel GUI, or through the web GUI for an OmniStream decoder.
Multiview Window Processing
The OMNI-121 features multiview window processing. It can ingest streams from up to four OMNI-111 encoders and display them simultaneously on a single screen. The OMNI-111 encoder can stream at 4K/60 4:4:4, plus deliver a secondary stream for multiview at a lower resolution up to HD 1080p.
Ethernet Link Testing
OmniStream AV over IP systems feature Ethernet link testing, a convenient feature for integrators and technicians to test integrity of the network infrastructure. Testing is initiated from the encoder web GUI, and performed between an encoder and decoders joined to it in a multicast group. Test results can be monitored from the encoder and decoder web GUI, avoiding the need to visually check for an image at each display location.
Applications
- Enterprises and other large organizations – Maximize AV application flexibility by enabling content sharing within single meeting rooms, or corporate-wide broadcasting to every connected screen.
- Corporate and university campuses with the need to distribute AV between buildings – OmniStream allows virtually unlimited AV system scope and scale. For very large, expansive or interconnected LANs, SMPTE-standard FEC (Forward Error Correction) ensures robust, reliable image presentation at every endpoint.
- Applications in which any AV content or resource can be shared anywhere in the system – AV over IP technology removes the restrictions associated with interconnecting sources and displays through standard matrix switching architecture.
- Meeting rooms and conference rooms – An IP network infrastructure makes it simple and efficient to design AV systems for small, large, and divisible meeting room configurations, and to centrally manage them throughout a facility.
- Overflow rooms, such as in universities and conference centers – The OMNI-121 decoder with multiview processing, together with OMNI-111 encoders can be used to duplicate the AV presentation in the main venue, while also displaying a PIP (picture-in-picture) window of a camera shot for the presenter.
- Houses of worship and performing arts centers – Ultra-low latency makes OmniStream ideal for IMAG applications with performers projected onto large screens, while ensuring synchronization with the live audio.
Features
Best-in-class AV over IP performance and reliability over Gigabit Ethernet
- Delivers pristine image quality and ultra-low latency over 1 Gbps (GbE) networks
- Ideal for integration over new or legacy network cable infrastructure – including CAT 5e
AV decoder for HDMI output up to 4K/UHD, plus embedded audio and RS-232 or IR control pass-through
- Decodes video, audio, and control, with the flexibility of receiving them together or from separate network sources
- Allows wide-ranging versatility for integrators to design systems to specific requirements
Supports 4K/60 4:4:4 plus HDR formats
- Supports HDR10 @ 60 Hz and 10-bit color, as well as HLG (Hybrid Log-Gamma) for 60p HDR broadcast services
- Supports Dolby Vision™ @ 60 Hz and 12-bit color
Advanced VCx codec
- Delivers 4K/60 4:4:4 with artifact-free presentation of computer-generated content and fast-motion video
- Ultra-low encode-to-decode latency less than 1 frame
High-efficiency coding
- VCx codec allows numerous 4K streams over 10 Gigabit uplinks between network switches
Integrated high-quality scaler
- OMNI-121 includes an integrated, high-performance scaling engine
- Provides upscaling and downscaling for a wide array of 4K/UHD, HD, and VESA resolutions
HDCP compliance
- Adheres to the latest HDCP 2.2 specification for High-bandwidth Digital Content Protection
- Allows protected content streams to pass between authenticated devices
- HDCP can be disabled through Velocity Device Manager, allowing content to pass to non-compliant displays and teleconference systems. Protected content is not transmitted.
Ultra-fast switching between 4K/60 video streams
- Provides instantaneous and precise video and audio HDMI switching
- Works between streams at different resolutions and frame rates
- Ideal for mission-critical applications where stable, fast AV switching is required
Encoder grouping
- Assign up to eight encoders to a logical group
- Allows the OMNI-121 decoder to automatically switch between encoders in the group upon input detection
- Create scalable, flexible switching systems with encoders placed wherever AV sources may be located
Multiview window processing (with AT-OMNI-111 encoder)
- Available for OMNI-121 decoder, together with OMNI-111 encoders
- Decoder ingests up to 4 streams and displays them on a single screen, without the need for a dedicated windowing processor
- Encoder sends a primary stream for full-screen display, and a secondary stream for multiview
Integrated Ethernet link testing
- Tests integrity of the network infrastructure between encoders and decoders (cabling, terminations, switch, bandwidth)
- Allows quick, easy verification or troubleshooting from the encoder and decoder web GUI – no need to visually check each display location
Thumbnail preview of encoded video streams
- View encoder streams as thumbnails on a Velocity touch panel or through the web GUI
- Ideal for previewing sources before selecting for display
- Also ideal for validating system operation
Networked AV redundancy
- Monitors AV streams and automatically switches to the backup stream if packet losses are detected
- Maximizes system reliability and meets IT requirements for system redundancy and failover
Network error resilience with FEC (forward error correction)
- Compensates for AV packet losses in large systems spanning several networks
- Enables consistent, reliable performance in enterprise-wide networked AV implementations
Simplify integration with plug-and-play network switch compatibility
- Streamline system setup by using Atlona Certified Switch configurations for popular models from Cisco®, NETGEAR®, and many others
- NETGEAR switches also available from Atlona (United States and Canada only)
- Saves installation time and costs without the need to manually configure a network switch
Local or PoE (Power over Ethernet) powering
- With PoE, decoders can conveniently be powered over the network from a PoE-equipped network switch
- PoE simplifies integration without the need for local AC power, and allows centralized power monitoring and management
- Optional AT-PS-48083-C power supply available
Secure content distribution with AES-128 decryption
- Decrypt AES-128 content from any OmniStream encoder
- Ensures secure content delivery across the network
- Ideal for government, military, and enterprise applications, as well as meeting IT security requirements
Supports industry-standard, network security features and protocols
- HTTPS, Telnet, SSH, WebSockets with TLS, and AES-128 encryption
- Features IEEE 802.1x which meets IT authentication requirements for enhanced network security
AES67-compatible
- OmniStream supports industry standard, AES67-compatible networked audio streams from encoders and audio interfaces
- Supports multi-channel PCM up to 7.1 channels
Audio embedding and de-embedding*
- Receives up to 7.1 channels of PCM audio as AES67 or native RTP networked audio from compliant sources and embeds audio onto the HDMI output, or outputs audio using the analog audio interface
- Receives audio from analog interface and embeds the audio onto the HDMI output
- * The optional AT-PS-48083-C power supply is required when using the analog audio interface.
Video wall processing
- Processing for video walls with portrait and landscape displays up to 16×16 @ 4K/30 and 2×2 @ 4K/60 with precision wall-tile alignment
Enhance AV presentations with visual enhancements
- Provide corporate or institutional branding by overlaying a logo
- Display a full-screen image as a backup in an event of an interruption in an AV stream, or between presentations
- Identify and label presentation content with static or scrolling text
EDID management
- EDID from a connected display can be copied and stored; EDID can also be assigned to a specific timing
- Ensures desired audio formats and video resolutions are provided to the AV system
Audio processing and pass-through
- Multi-channel PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
- Supports multi-channel PCM audio downmixing to two-channel PCM
Display control
- Supports IR, bidirectional RS-232, and CEC to control connected displays
- Bidirectional TCP proxy enables RS-232 commands over TCP/IP
System management
- Intuitive standalone web GUI
- Velocity Device Manager – web-based interface for configuration and management of OmniStream systems, and AV over IP cross-connections
Compact enclosure
- Installs side-by-side in a rack with the optional AT-OMNI-1XX-RACK-1RU rack mount shelf
Included accessories
- Installation guide, surface mounting brackets, and RS-232 / IR captive screw connector
