Description

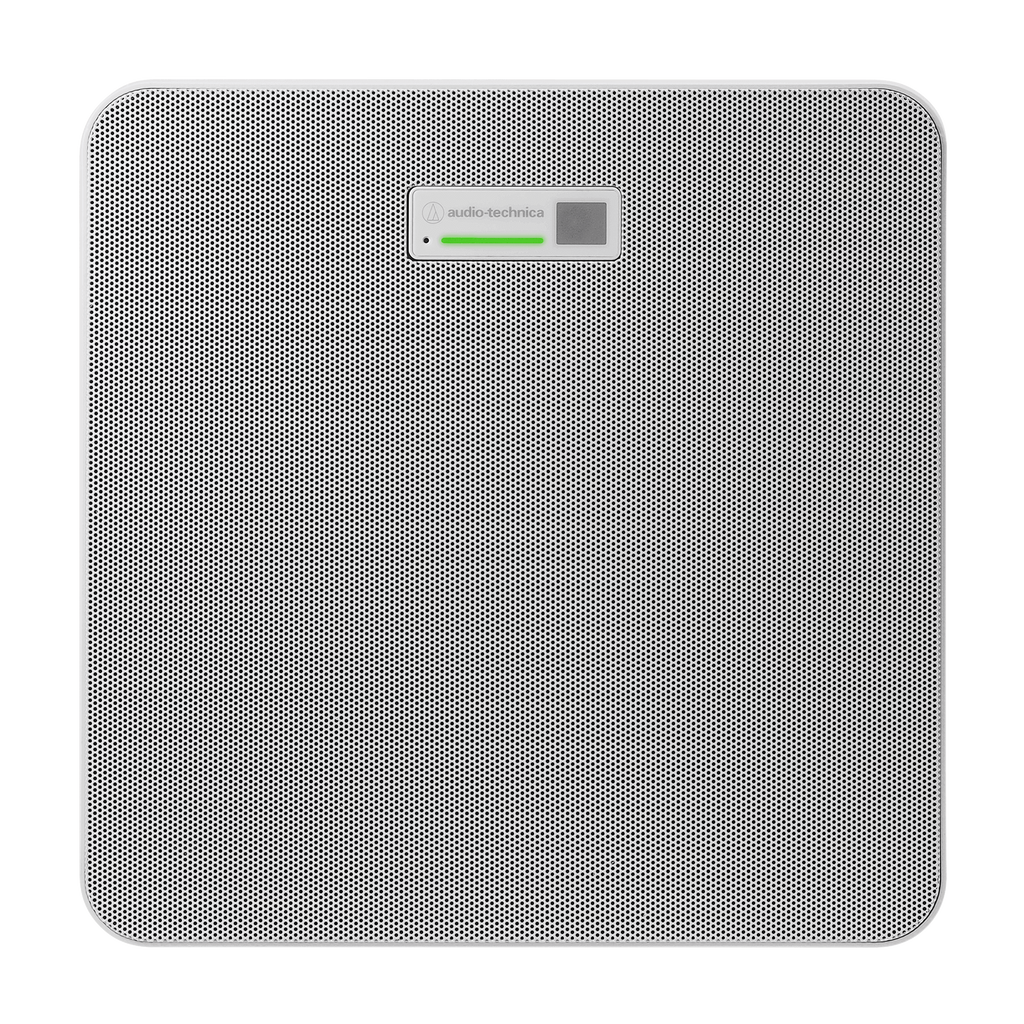

Beamforming microphone array with Dante network output, configured via Digital Microphone Manager software,Êused mounted flush or on the surface of ceiling or with VESA mount.
- The ATND1061 beamforming microphone array is an ideal solution for conference rooms, boardrooms, and meeting spaces large and small
- ATND1061 is enabled with VISCA over IP to control PTZ (pan-tilt-zoom) cameras and other video equipment over a network and sync with microphone audio
- ATND1061 is equipped with voice lift technology that allows everyone in a large meeting space to hear equally well – regardless of how far away they are from the person speaking
- Powerful onboard DSP: automix, acoustic echo cancelation, noise reduction, automatic gain control, and 4-band EQ
- User-friendly Digital Microphone Manager software easily configures single or multiple ATND1061 microphone settings
- Six individual output channels with up to 32 user-defined microphone pickup zones provide the flexibility to cover a wide variety of room sizes and meeting types
- Output Channel 1 can be configured with up to 16 user-defined Coverage Zones to ensure coverage of nonpriority or unplanned participants
- Output Channels 2–6 can be configured with up to 16 user-defined Priority Zones to ensure priority pickup of participants in known locations
- Proprietary voice activity detection (VAD) technology enables the microphone to discern between a voice and unwanted noises such as paper shuffling
- Exclusion zones can be set in the software to avoid known sources of unwanted noise (such as air-handling systems)
- Two network ports with Single Cable and Split modes to send Dante audio and microphone control data together or separately over category cable (ATND1061DAN)
- Mounts flush or on the surface of a drop ceiling or hard ceiling, or in open architecture spaces using VESA mount
- UL 2043 compliant for installation in plenum spaces
- Includes tile bridge, safety wiring, and mounting hardware and accessories
- Low-reflective white finish matches ceiling tiles in most environments
- Powered by network PoE
