Description
The BMA 360DX is a transformative union of AV and IT technologies shattering the traditional market barrier between performance and ease-of-deployment. This nextgeneration design provides an ecofriendly audio-conferencing solution - all in one innovative ceiling tile.

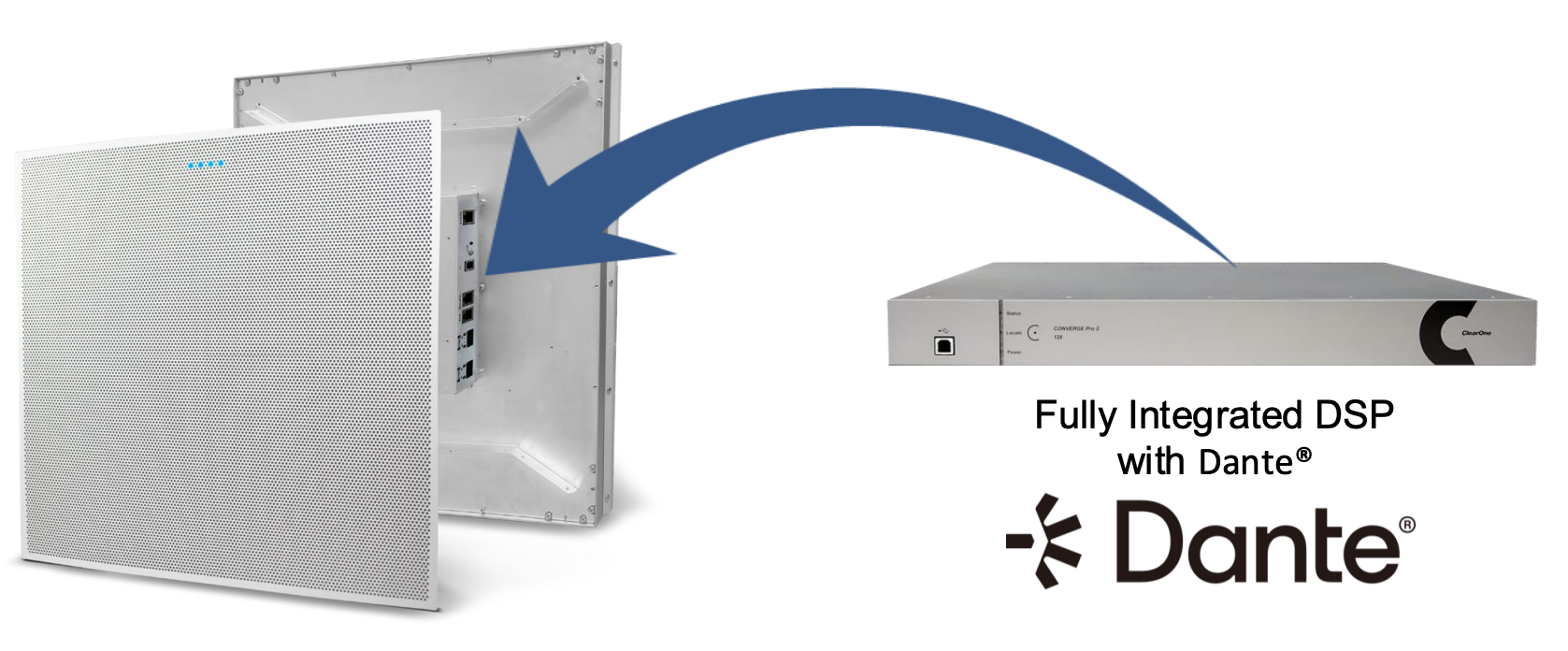

The platform elegantly combines an advanced beamforming microphone array, a fully integrated DSP processor with Dante®, and a multi-channel amplifier as a single ceiling tile at an unbeatable price. With everything on board, its scalable design easily adapts to a variety of meeting spaces.
> This consolidated design eliminates rack space, reduces packaging, storage, and shipping requirements—providing a more environmentally friendly meeting solution.
> The simplicity and affordability of this breakthrough design finally offers both AV and IT practitioners alike, the opportunity to make supreme professional quality audio accessible to all.
> Setup is quick—automatic detection and configuration of peripherals like additional beamforming microphone arrays, USB expanders, and analog audio interfaces means no programming is needed. Simply connect the cables and you’re conferencing.

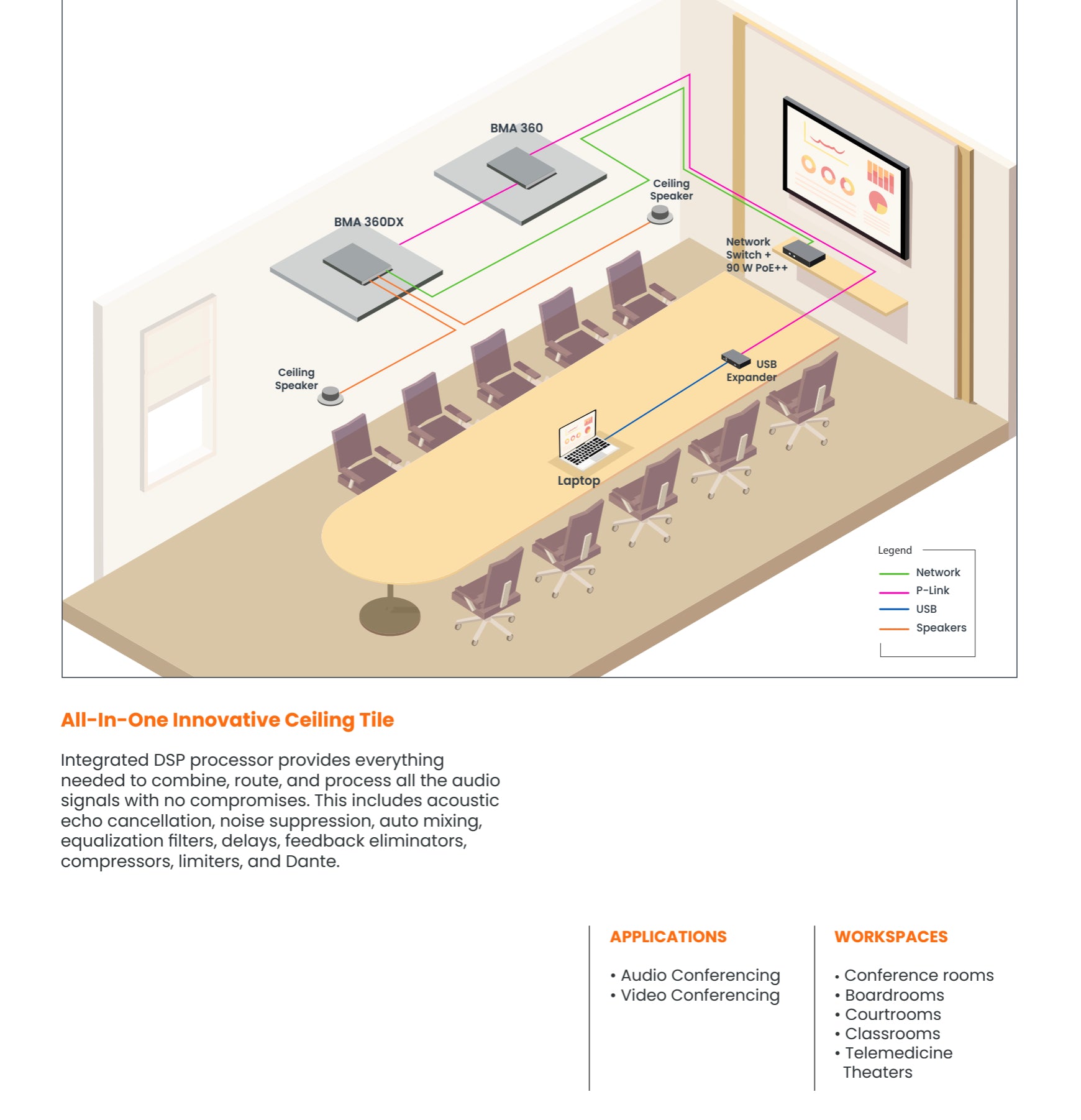

> The BMA 360DX is scalable for a variety of meeting spaces and can even auto-detect and preconfigure 2 additional connected BMA 360 beamforming ceiling tiles. >The BMA 360DX auto-detects and pre-configures ClearOne peripheral options including USB expanders, analog audio I/Os, and HDMI audio de-embedders.
> ClearOne’s 7G AEC and adaptive acoustic processing provides unrivaled echo elimination and full-duplex audio – even in the most challenging spaces.
AUDIO CONFERENCING
> Deep Sidelobe Beamforming, DsBeam™, provides unparalleled sidelobe depth, below -40 dB, resulting in superior rejection of reverb and noise in difficult spaces for superb clarity and intelligibility.
> ClearOne’s BMA 360DX breakthrough technologies, FiBeam, DsBeam, and 7G AEC, combine to create VividVoice™, a significant advancement for professional conferencing which ensures an equitable meeting experience.
> Built-in power amplifiers, selectable as 4 x 15 Watt or 2 x 30 Watt, make driving loudspeakers simple and convenient.
> In large spaces, the Voice Lift feature provides a powerful and simple way to drive multiple speaker zones with unmatched gains, allowing everyone to hear every word.
> Built-in control for networked PTZ cameras, provides an engaging and seamless visual experience, and eliminates the complexity and expense of external controllers for camera tracking.
> CONVERGENCE® AV Manager software simplifies the management and monitoring of the BMA 360DX and other ClearOne devices, including DSP processors, wireless microphones, and cameras.
> Supports two different ceiling grid types: 24 in and 600 mm. It incorporates a VESA-mount hole pattern that supports pole mounting. Hard-ceiling mount adapter kits are also available.
BEAMFORMING FEATURES
• True Frequency Invariant Beamformer: Gain response is unvarying across frequency
• Beamwidths: 35 °, 45 ° and 55 ° with Frequency Invariance
• Beamforming Range: 100 Hz to 20 KHz • Deep Sidelobes: Down to 45 dB of depth
• Beam Pointing Accuracy: 0.2 dB
• Dynamic Range: 20 Hz to 20 KHz, > 70 dB
• Number of Beams: Up to 12
• Room Patterns: Full Circle/Square, Rectangular, Semi-Circle/Classroom, Custom Beams
• Coverage Sizes: Up to 600 square feet/58 square meters
• Ceiling Height: Configurable with CONSOLE® One from 7 ft to 20 ft
AMPLIFIER OUTPUT
• Type: 5.08 mm (0.2 “) Header, Phoenix-type Euroblock
• Audio: 4 channels
• Output Power: 4x15 W Max, 8 Ω load, or 2x30 W, 4 Ω load, Bridged
• Frequency Response: 20 Hz – 22 kHz, +/- 0.5 dB
CONFIGURATION
• Acoustic Echo Cancellation (AEC) On/Off
• Noise Cancellation (NC) on/off. Range: 6 to 25 dB depth.
• Automatic Level Control (ALC) On/Off • Gain Adjust • Mute On/Off

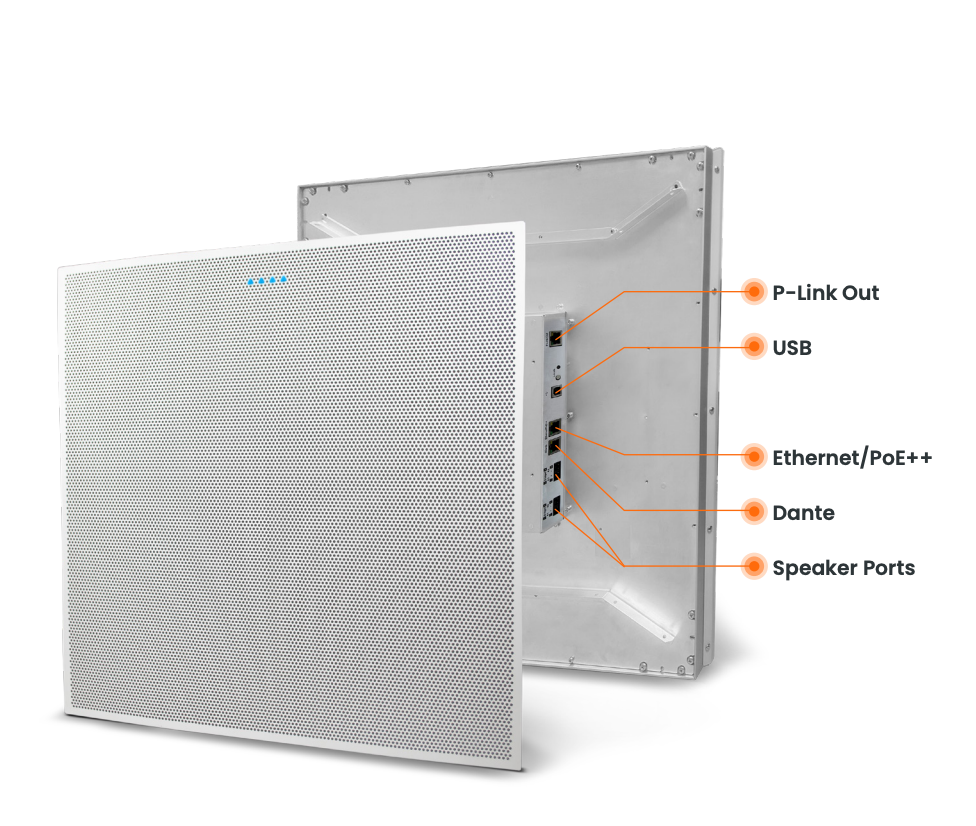

ETHERNET
• Port Type: RJ-45, 10/100 Mbps Ethernet Network, Auto Negotiation
• IP address: IPv4
DANTE™ and AES67 AUDIO
• Port Type: RJ-45 Gigabit Ethernet connector for Primary Port
• Audio: Digital Audio, 8 x 8 bidirectional channels
• Sample Rate: 48 kHz • Sample Bit Depth: 24-Bit
• AES67 Mode: Enabled through Dante Controller software
CAMERA TRACKING
• Supported Cameras: Unite 150, Unite 160, Unite 200 and Unite 260
• Communication Protocol: VISCA
• Communication options: Ethernet (VISCA over IP)
SOFTWARE
• CONSOLE® One
DIMENSION & WEIGHT
• 24 IN - Product Dimension: 23.7 x 23.7 x 2.1 “ (602.5 x 602.5 x 54.1 mm) - Product Weight: 11.1 lbs (5.0 Kg) - Shipping Weight: 14.2 lbs (6.4 Kg)
• 600 mm - Product Dimension: 23.3 x 23.3 x 2.1 “ (592.5 x 592.5 x 54.1 mm) - Product Weight: 9 lbs (4.0 Kg) - Shipping Weight: 12.8 lbs (5.8 Kg)
