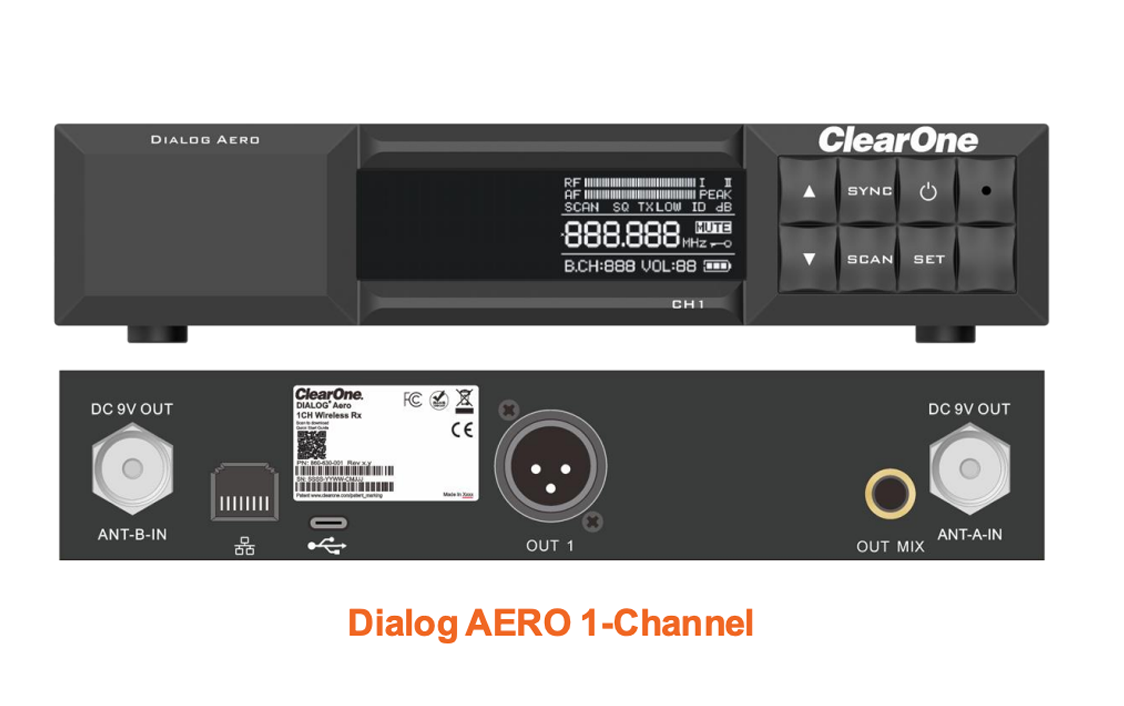

Dialog Aero Receiver 1CH

Dialog Aero Receiver 1CH



Dialog AERO 1 Channel is a 1-channel encrypted digital wireless microphone system with UHF wideband coverage (500-608 MHz). It offers ultra-low latency (under 4ms), over 100 MHz of RF tuning range, and professional balanced XLR outputs.

The microphones can be powered by rechargeable Li-Ion AA batteries, NiMH AA batteries, standard AA batteries, or USB-C. Both the microphones and dock can charge Li-Ion and NiMH batteries, with the dock also able to charge spare batteries.

The system has a working distance of up to 80 meters (262 feet) and provides 12 hours of battery life. The auto-scan feature finds open channels for optimal reception, and the receiver displays RF power level, battery life, and signal strength.

The system includes a 2-bay smart dock that can be linked to create up to an 8-bay configuration. It can be expanded with optional accessories like a four-channel antenna distributor, ceiling mount antennas, and antenna combiners.



• With less than 4 ms of end-to-end audio latency, this system is ideal for conferencing and sound reinforcement applications.
• Includes a modular expandable 2 bay smart dock. Link multiple 2 bay docks together to make up to an 8 bay dock to simplify installation and minimize cabling.

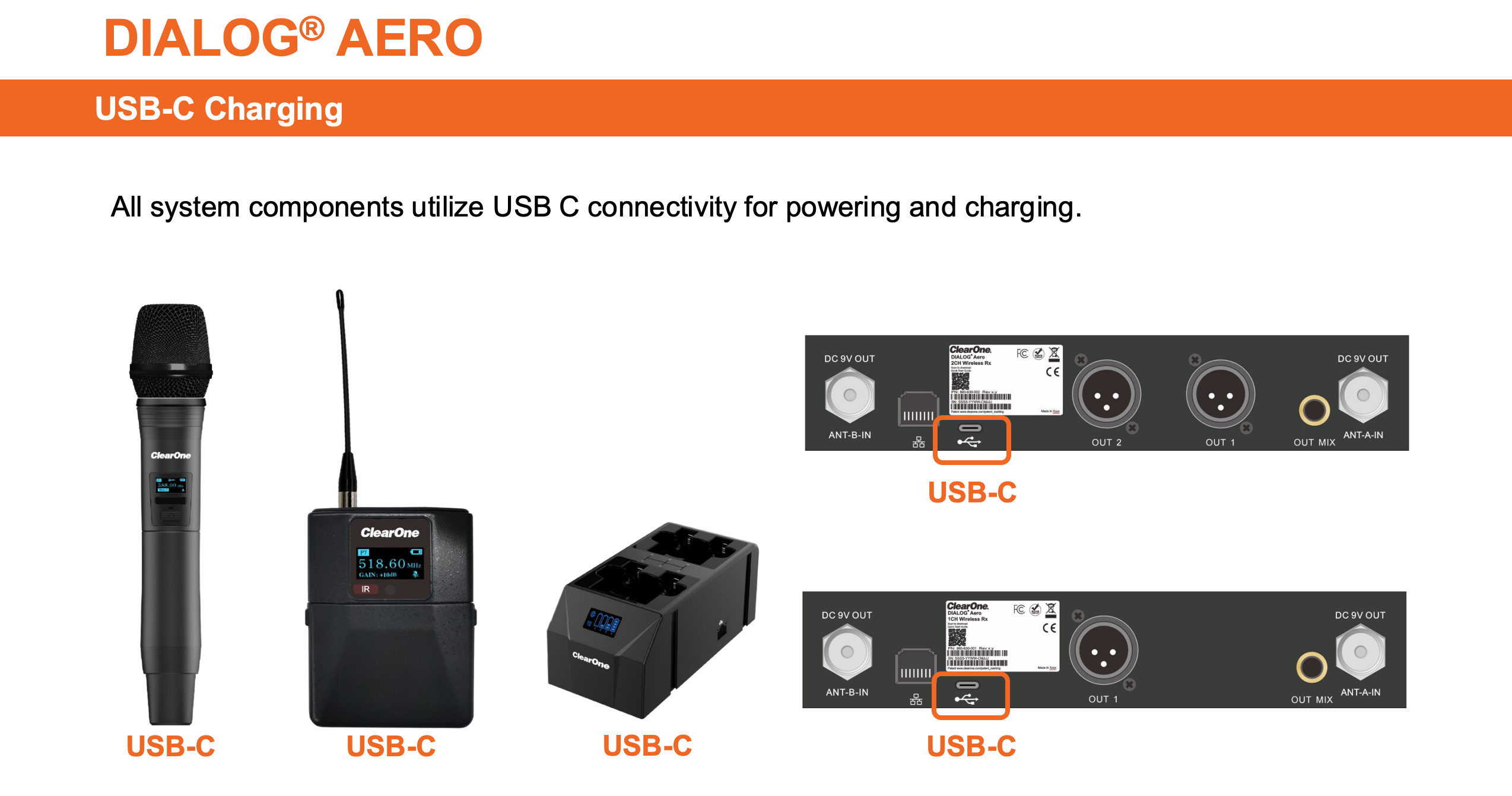

• All system components utilize USB C connectivity for powering and charging.
• Microphones can be powered with the included rechargeable Li-Ion AA batteries. Microphones can also be powered using NiMH AA rechargeable batteries, common AA battery types, or USB C.
• Microphones and Dock can charge Li-Ion and NiMH AA batteries. The Dock also charges spare AA batteries.
• The receiver connects to any audio device using professional balanced XLR output(s) and an unbalanced 1/4-inch mixed output.
• The auto-scan feature finds open channels for optimal reception.

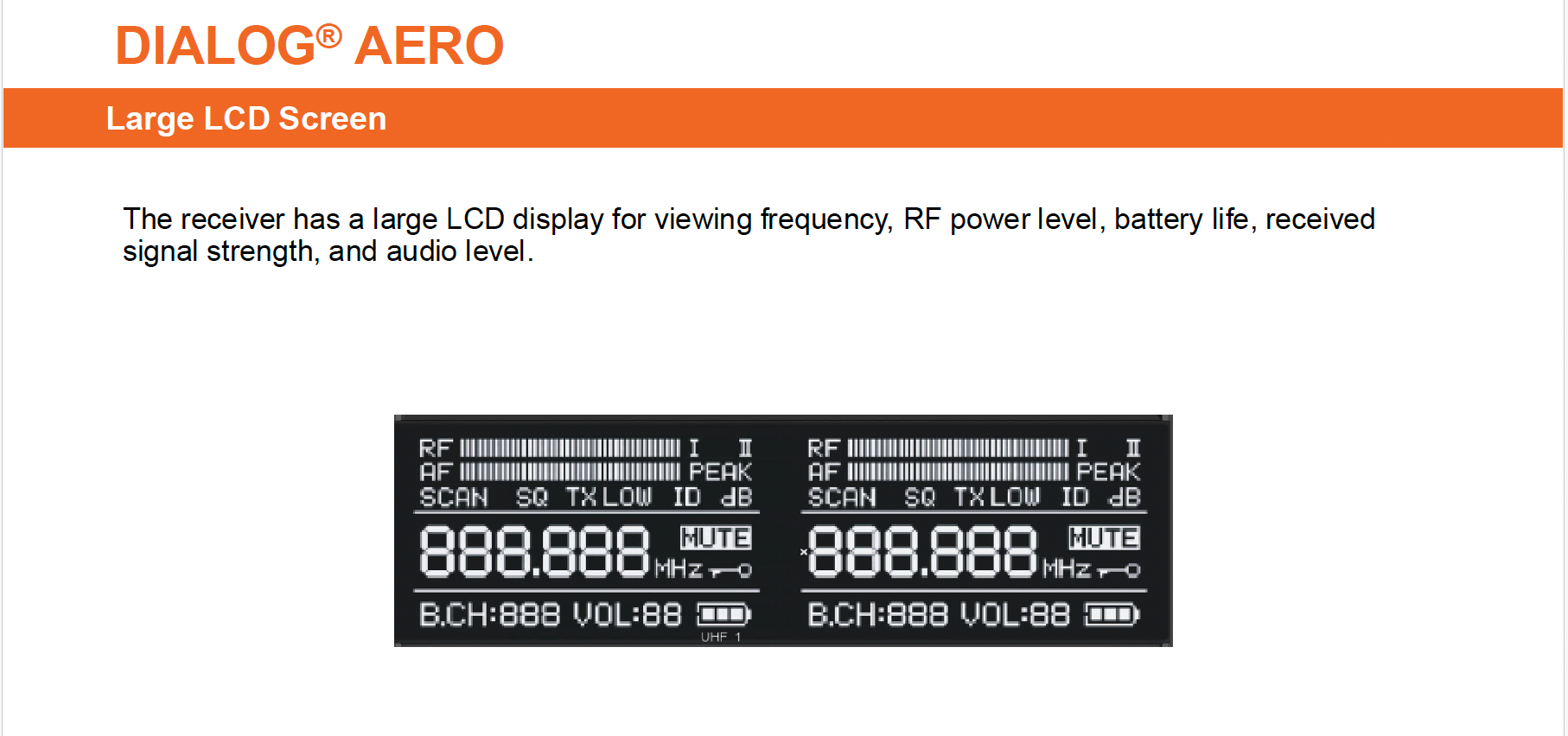

• The receiver has a large LCD display for viewing frequency, RF power level, battery life, received signal strength, and audio level.
• The receiver’s compact half-rack size offers versatile mounting options. It can be installed in an equipment rack using the included rack ears or placed on a desktop, inside a credenza, under a table, or behind a video display.
• Includes detachable antennas with a 5-foot extension kit for added flexibility.
• Aero Console software provides remote configuration, monitoring and management of the receiver and smart dock via Ethernet.



Applications



• Town Hall Meetings

• Company All-hands Meetings

• Company Management Retreats

• School Award Meetings

• Rallies

• House of Worship

• Hybrid Training and/or Presentation Sessions

• Sound Reinforcement and Voice Lift

• Rental Equipment


Workspaces

• Class Rooms

• Auditoriums

• Court Rooms

• Gymnasiums

• Huddle Rooms

• Training Rooms

• Multipurpose Rooms
