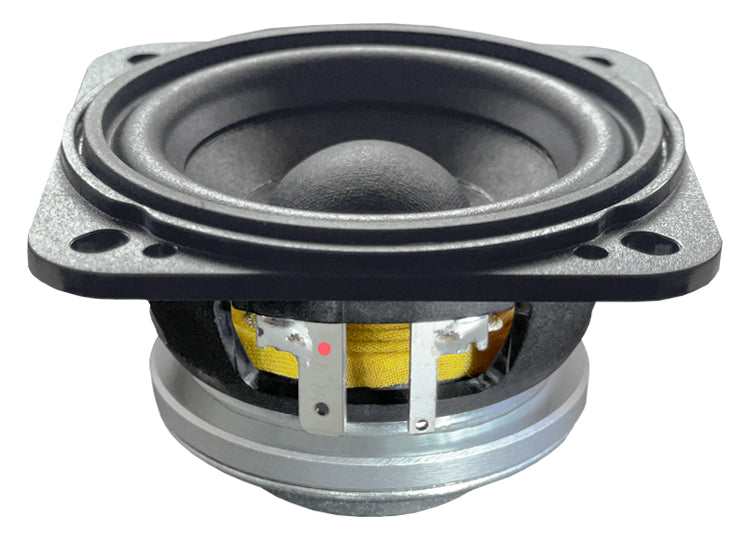

Description
Key Specifications
Nominal Diameter: 2.5 in (66 mm)
Nominal Impedance: 8 Ohm (minimum 7.1 Ohm)
Power Handling: 25 W AES (50 W max program)
Sensitivity: 89 dB (1W/1m)
Frequency Range: 125 – 20,000 Hz
Voice Coil Diameter: 19 mm (0.75 in) with aluminum winding on a Kapton former
Magnet: Neodymium ring magnet
Basket Material: Polycarbonate
Resonance Frequency (Fs): 125 Hz
Linear Excursion (Xmax): ±2.9 mm
Overall Dimensions: 88 mm x 68 mm (square front flange)
Baffle Cutout Diameter: 60.5 mm
Mounting Depth: 35.5 mm (after front)
