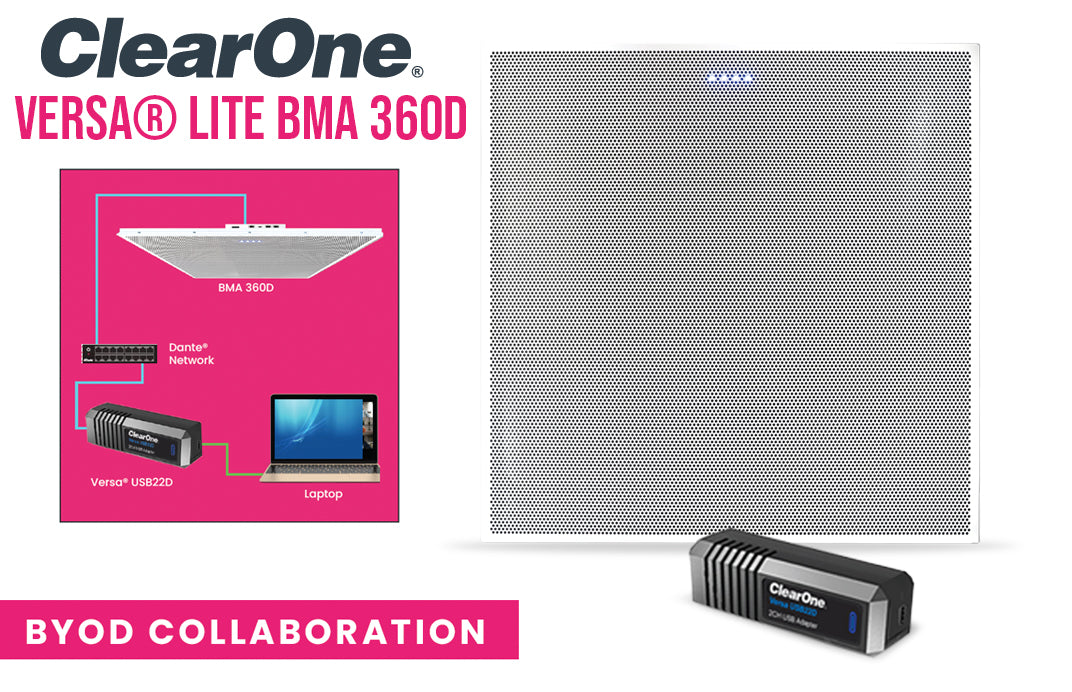

Versa® Lite BMA 360D



The BMA 360D with Dante® audio is the microphone array ceiling tile that incorporates the world’s most advanced technology and works with any Dante enabled DSP mixer.

The BMA 360D is the industry’s only ultra-wideband, frequency invariant beam forming mic array with uniform gain response across all frequency bands. With FiBeam™ and DsBeam™ technology, participants experience natural and full-fidelity audio across all beams and within a single beam.

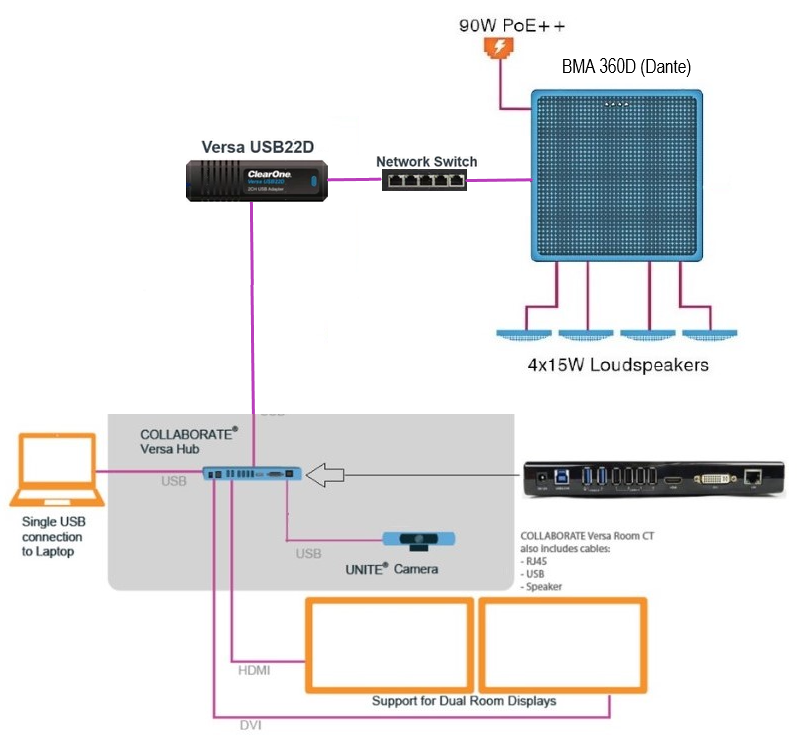

Versa USB22D Supports 2x2 channels of bidirectional audio, allowing PCs and mobile devices to playout and capture audio with Dante enabled devices over a standard IP network. Automatically discover and natively configure using Audinate® Dante® Controller software.

Simple BYOM Connectivity

Connect a laptop or desktop computer to the USB22D and you are ready for unrivaled audio performance with any conferencing software, including Microsoft Teams, Zoom, and Google Meet.



Includes:

Versa Lite BMA 360D 24 in

- BMA 360D 24 in

- Versa USB22D

- 90 W PoE++

• 2 x 50 ft CAT6 cable





BEAMFORMING FEATURES

• True Frequency Invariant Beamformer: Gain response is unvarying across frequency

• Beamwidths: 35 °, 45 ° and 55 ° with Frequency Invariance

• Beamforming Range: 100 Hz to 20 kHz

• Deep Sidelobes: Down to 45 dB of depth

• Beam Pointing Accuracy: 0.2 dB

• Dynamic Range: 20 Hz to 20 kHz, > 70 dB

• Number of Beams: Up to 12

• Room Patterns: Full Circle/Square, Rectangular, Semi-Circle/Classroom, Custom Beams

• Coverage Sizes: Customizable coverage patterns starting at 5 ft x 5 ft (25 sq ft area)circular coverage at a mounting height of 7 ft to a maximum coverage of 64 ft x 64 ft (4096 sq ft area) circular coverage at a mounting height of 20 ft NOTE: The performance of the coverage is affected by room acoustics, construction, materials, and noise levels.

• Ceiling Height: Configurable with CONSOLE AI Lite from 7 ft to 20 ft





AMPLIFIER OUTPUT

• Type: 5.08 mm Header, Phoenix-type Euroblock • Audio: 4 channels • Output Power: 4 x 1 5 W Max, 8 Ω load, or 2 x 30 W, 4 Ω load, Bridged

• Frequency Response: 20 Hz – 22 kHz, +/- 0.5 dB



CONFIGURATION

• Acoustic Echo Cancellation (AEC) On/Off

• Noise Cancellation (NC) on/off. Range: 6 to 25 dB depth.

• Automatic Level Control (ALC) On/Off

• Gain Adjust

• Mute On/Off



SOFTWARE

• CONSOLE® AI Lite



DIMENSION & WEIGHT



• 24 in

- Product Dimension: 23.7 x 23.7 x 2.1 “ (602.5 x 602.5 x 54.1 mm)

- Product Weight: 11.1 lbs (5.0 Kg)

- Shipping Weight: 14.2 lbs (6.4 Kg)

• 600 mm

- Product Dimension: 23.3 x 23.3 x 2.1 “ (592.5 x 592.5 x 54.1 mm)

- Product Weight: 9 lbs (4 Kg)

- Shipping Weight: 12.8 lbs (5.8 Kg)
